Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac

Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac

Off-Grid-Controller 5KW MPPT

Off-Grid-Controller 30KW 380Vac

MPPT Off-Grid-Controller 48Vac

Markenname:

Greef

Zertifizierung:

CE

Model Number:

AHCC

Kontakt mit uns
Bitte um ein Angebot
Einzelheiten zum Produkt
Nennspannung:
48vac-380vac
Nominale Netzspannung:
42-240VDC/200-1000 VDC (Parameter abhängig von der Art der Energiespeicherung)
Nennkraft aus Windkraft:
5 kW/10 kW/20 kW/30 kW
Eingabebereich:
Sicherungen; Blitzschutzschaltungen
MPPT -Spannungsbereich:
90 ~ 520V Customized/220 ~ 530 VAC
Höhe über dem Meeresspiegel:
3000 m Volllastausgabe
Akku-Typ:
Blei-Säure-Batterien, Lithiumbatterien, DC-Bushals usw.
Maximale Widerstand Spannung:
290 VAC-530VAC/600VAC für 5 Sekunden
Hervorheben:

Off-Grid-Controller 5KW MPPT

,

Off-Grid-Controller 30KW 380Vac

,

MPPT Off-Grid-Controller 48Vac

Zahlungs- und Versandbedingungen
Minimum Order Quantity
1Set
Preis
Verhandelbar
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Zahlungsbedingungen
T/T, Western Union, Moneygram, l/c
Supply Ability
Supply Ability
Beschreibung des Produkts
Greef Off-Grid-Controller für Windkraftanlagen
Maximale Spannungsfestigkeit: 290Vac-530Vac/600Vac für 5 Sekunden | Nennspannung: 48Vac-380Vac
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 0
Produktbeschreibung
Der Off-Grid-Controller ist die wichtigste Komponente in Windgeneratorsystemen und ist dafür verantwortlich, den Dreiphasen-Wechselstrom der Windturbine in Gleichstrom zum Laden von Batteriebanken umzuwandeln.
Der GREEF Wind Off-Grid-Controller verbessert die Stromerzeugung durch dedizierte MPPT-Technologie und bietet:
  • Modernes modulares Design für flexible Konfiguration
  • Elektrische Isolation für Sicherheit
  • PWM-Entladefähigkeit
  • Host-Computer-Steuerungsintegration
  • Große Touchscreen-Oberfläche
  • IoT-Funktionalität für Fernüberwachung
Anwendungen
Der AHCC Off-Grid-Controller ist für verschiedene Systeme erneuerbarer Energien konzipiert:
  • Windstromerzeugungssysteme
  • Wasserkraftwerke
  • Solarstromerzeugungssysteme
Er optimiert die Leistung und Effizienz durch zuverlässige Steuerungs- und Überwachungsfunktionen, die auf jede erneuerbare Energiequelle zugeschnitten sind.
Technische Daten
Modell AHCC-5KW AHCC-10KW AHCC-20KW AHCC-30KW
Nennleistung 5KW 10KW 20KW 30KW
Produkttyp MPPT, hochfrequenzisolierter New-Energy-Wandler
DC-Ausgangsseite
Art der Energiespeicherung Blei-Säure-Batterien, Lithium-Batterien, DC-Sammelschienen usw.
Nennausgangsstrom 100A 200A 80A 150A
Ausgangsspannungsbereich 42-240Vdc (einstellbar) 200-1000Vdc (einstellbar)
Spannungsstabilisierungsgenauigkeit ≤±0,5%
Stabilisierungsgenauigkeit ≤±1%
Windturbinen-Eingangsseite
Nennspannung 48Vac-380Vac 380Vac
Maximale Spannungsfestigkeit 290Vac-530Vac für 5 Sekunden 600Vac für 5 Sekunden
MPPT-Spannungsbereich 90~520V kundenspezifisch 220~530Vac
Maximale Leistung 10kW 20kW 40kW 60KW
Nenneingangsstrom 40Aac 80Aac 40Aac 80Aac
Eingangsschutz Sicherungen; Blitzschutzschaltungen
Entladungsseite
Entlademethode PWM
Nennentladestrom 40Adc 100Adc 50Adc 100Adc
Maximale Stromfestigkeit 60A 200A 200A 400A
Umgebungsbedingungen
Umgebungstemperatur -25℃~50℃
Lagertemperatur -40℃~75℃
Relative Luftfeuchtigkeit 0 bis 95%
Höhe über dem Meeresspiegel 3000m Volllastausgang
Kommunikationsschnittstelle Standard: RS485/TCP
Größe des Controllers (mm) 485×267×450mm 343×605×970mm
Controller-Gewicht 29,5 kg 38,5 kg 61,5 kg 71,5 kg
Größe der Dump-Last (mm) 695×131×194mm 700×450×750mm 820×620×900mm 900 x 700 x 1270mm
Dump-Last-Gewicht 18 kg 40 kg 80 kg 120 kg

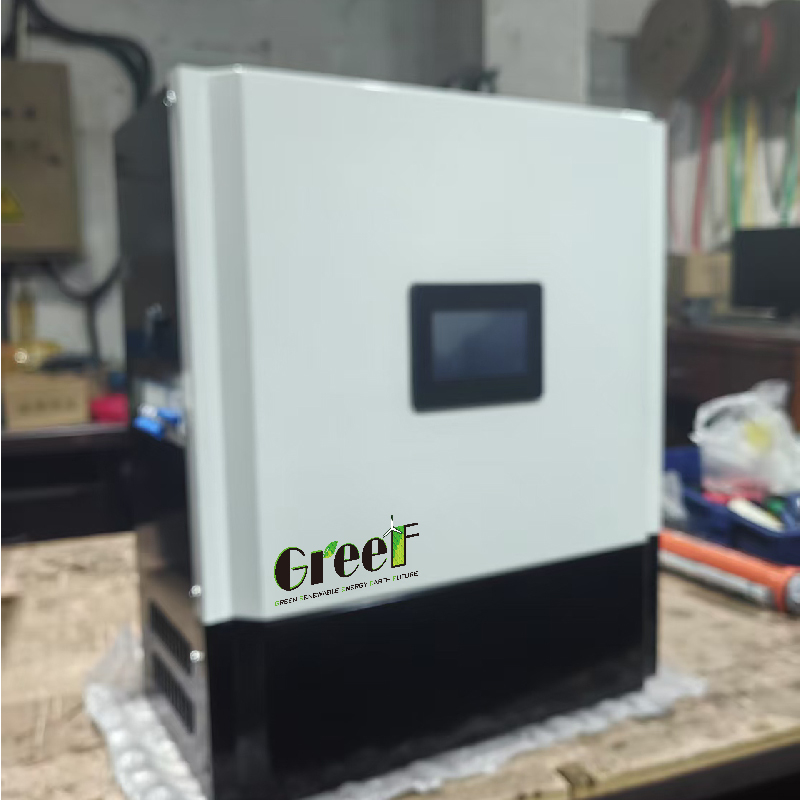

Produktbilder
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 1
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 2
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 3
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 4
Systemlösung
Wir können ein System auf Ihre spezifischen Bedürfnisse zuschneiden.Bitte kontaktieren Sie unsum mehr über unsere Produkte zu erfahren.
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 5
Produktverpackung
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 6
